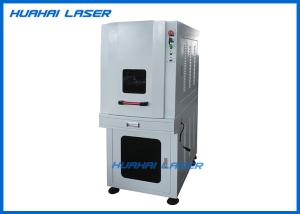

Stable Performance Ultraviolet Laser Marking Machine Low Power Consumption

Name: Stable Performance Ultraviolet Laser Marking Machine Low Power Consumption
Brand: Huahai Laser
Price: 1 USD

China Stable Performance Ultraviolet Laser Marking Machine Low Power Consumption wholesale

Brand Name : Huahai Laser

Model Number : HM03P/HM05P/HM07P

Certification : CE,FDA

Place of Origin : Wuhan,China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200sets/month

Delivery Time : 5-7days

Packaging Details : Export wooden box packaging

CNC or Not : YES

Keywords : UV laser marking machine

Cooling Mode : Water Cooling

Laser Wavelength : 355nm

Applicable Material : Acrylic,Crytal,Glass,Leather,MDF,Stone etc.

Warranty : 24 months

Contact Now

5 Watts Water Cooling UV Laser Marking Machine For Metal And Non-metal Engraving

Product Introduction:

UV Laser Marker is cold light source. UV laser with short wavelength,focus,smaller spot,belongs to cold process with a little heat affecting,good beam quality, it can achieve hyperfine marking.Most materials can absorb ultraviolet laser,it is widely applied on industries; with very little heat affecting area, it won't have heat effect,there is no burning problem,pollution-free,non-toxic,high marking speed,high efficiency,the machine performance is stable,low power consumption.

Applied Industries:

Eletronic components	resistance, capacitance, chips, printed circuit boards, computer keyboard etc.
Apparatus and meter	panel board, nameplates, panel signs, precision equipment etc.
Hardware tools	knives, tools, measuring tools, cutting tools etc.
Mechanical parts	pistons, bearings, gears, shafts, clutch, standard parts, motors, etc.
Daily necessities	cosmetics, labels, handicrafts, zipper, key holder, sanitary ware, eyewear, LED light etc.
Digital electronic	computer, laptop, digital camera, mobile phone and accessories etc.
Jewelry	rings, necklace, earrings, gold, silver etc.
Medical	medical device, surgical instruments, medical packaging etc.
Packing	dishware ,food, beverages, smoking and alcohol, plastic packing bag etc.

Marking Materials:

Metals	gold, silver, brass, sluminium, steel, stainless steel, iron, Iitanium, carbon steel, mild steel, spring steel, copper, magnesium, zinc, galvanized sheet, rare metal and alloy steel, special surface treatment (aluminum anodized, plating surface, surface oxygen breaking of aluminum and magnesium alloy) etc.
Nonmetals	rubber, resin, nylon, plastics(PET,HDPE,PP, ABS,PC,PPS,PVC) makrolon etc.

Marking Contents:

Graphics	picture, logo, design, bar code, two-dimension code etc.
Text	character, number, time, serial number, production date, expiry date etc.

Features:

• Small beam diameter and fine marking line
• Good quality and high laser beam stability
• Complete machine stability, simple and easy operation
• Narrow pulse width, small heat affected zone, workpiece without damage
• Suitable for sensitive material as cold light source
• Laser directly acting on molecular chain with maximum extend to avoid thermal effect

Specifications:

Model	HM03P/HM05P/HM07P
Wavelength	355nm
Laser power	3W/5W/7W
Pulse width	≤18ns
frequency of laser	0-100kHz
Standard engraving range	110mm×110mm
Repeating precision	±0.005mm
Minimal linear Width	≤0.01mm
Marking speed	7000mm/s
Electrical Power	220V/110V
Cooling system	Air cooling/Water cooling
UV Laser source	China RFH laser or USA imported advanced OptoWave
Galvo	Top brand made in China
Control card and software	EZCAD laser mark
Lens	Imported one
Applied material	Rubber, plastic, glass, leather, crystal, metal etc.

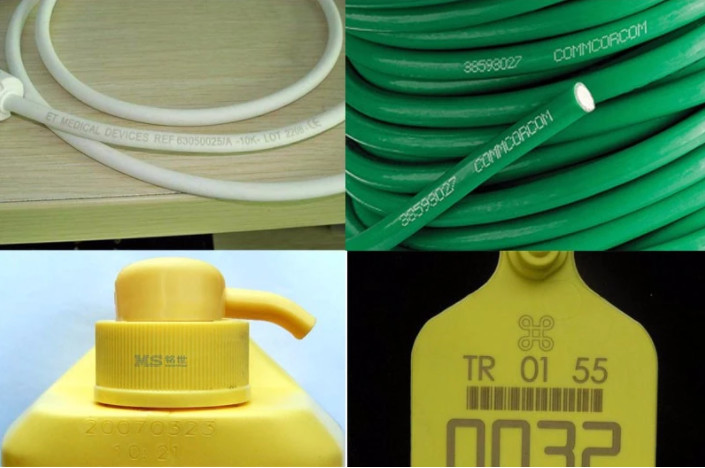

Samples:

Stable Performance Ultraviolet Laser Marking Machine Low Power Consumption
