Stainless Steel Parts Advertising Channel Letter Handheld Laser Welding Machine Price
Machine Production:
With the booming of global advertising industry, metal letters has been more and more popular because of its colorfulness,attractiveness, heating-proof, frozen-proof, no deformation, no fadedness (8-10 years color preservation), corrosion proof, rain-proof, and spontaneous combustion proof and some other good features.

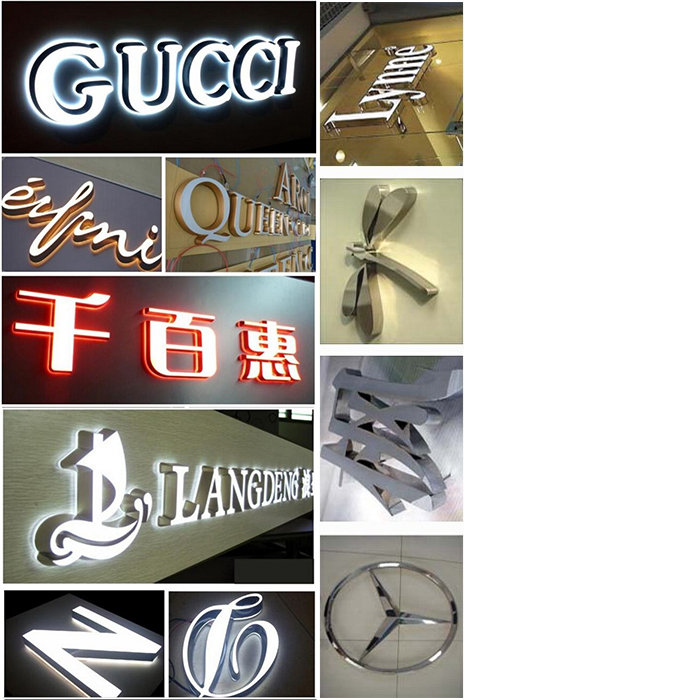

AD metal letters are made of stainless steel, aluminum, brass or other metal sheet being cut, polished, hemmed, and welded. The core feature of AD metal letters is being rustproof, with long life span and dimensional looks. It's widely used in LED illuminated billboard, exterior/interior signs, branding, door plate and etc.
Huahai Laser Channel letter aluminum laser welding machine is used for making a variety of stainless steel letter, LED luminous characters, AD Logos, signs and other fast welding.Logo making, fine word production, metal word production, Copper factory, advertising production company, and so on. Perfectly weld for 0.1-2mm stainless steel, galvanized plate and bronzing plate; 0.1~1.2mm copper brass and aluminum.
Features:
1. Red light finds the welding point fast, CCD intuitive observation, optional microscope.
2. Marble working platform, to ensure that the bright face plate does not scratch.
3. Machining speed, dedicated fixed focus position of the rotation of the bearing rod, without the need for CCD and microscope. It can quickly focus on the welding.
4. Small thermal deformation and heat affected zone.
5. local heat treatment can be carried out on the metal word;
6. Available for the processing of complex shape of parts and small words.
7. Processing without noise, no pollution to the environment;
8. Ultra fine bearing rotating positioning rod, friction plate welding word, also need not adjust the spot position in the font corner.
9. Owing to the advanced processing method, the quality of the existing metal character is greatly improved.
10. LED ring special lighting lamp, no dead spot.
11. The self-produced high peak laser power supply, for other brand is difficult to weld aluminum. The machine can easily achieve (400W models for welding aluminum models).
12. standard models and double light path optional hard light welding small, 5 meter long fiber pen welding with Chinese characters.
Application:
Widely used in all kinds of stainless steel, LED channel letter, LOGO identity, signage, advertising products such as rapid precision welding.
Technical parameters:
| Model | HB-HW300w/400w/600w |
| Laser power | 300w/400w/600w |
| Laser medium | Nd:YAG and fiber |
| Laser wave length | 1064nm |
| Welding min. Molten pool | 0.1mm |
| Welding depth | 1mm |
| Pulse width | 0.1-20ms continuously adjustable |
| Pulse rate | 1-200Hz continuously adjustable |
| Viewing system | CCD camera and red light positioning |
| Power | ≤6KW |
| Power source | 220V/50Hz/30A |
| Table format | 1000x800mm |
After-service
1) Free Pre-Sales Consulting / Free Sample Marking
2) Strict Quality Control of Production
3) 5-7 Days Quick Delivery
4) 1 Year Quality Guarantee
5) 12 hours Quick Feedback & After-Sales Service
6) Quick Back-up Parts Available & Technical Assistance
7) Free Training Service
8) Special Designing, Customized, OEM Order is accepted
.
Product Tags:
|
|
1064nm Channel Letter Laser Welding Machine For Stainless Steel Parts Advertising Images
|
